HS1T24SA

Print this page

Description

Brand APEM
Product CodeHS1T24SA
Stock StatusPre-order
Stock0

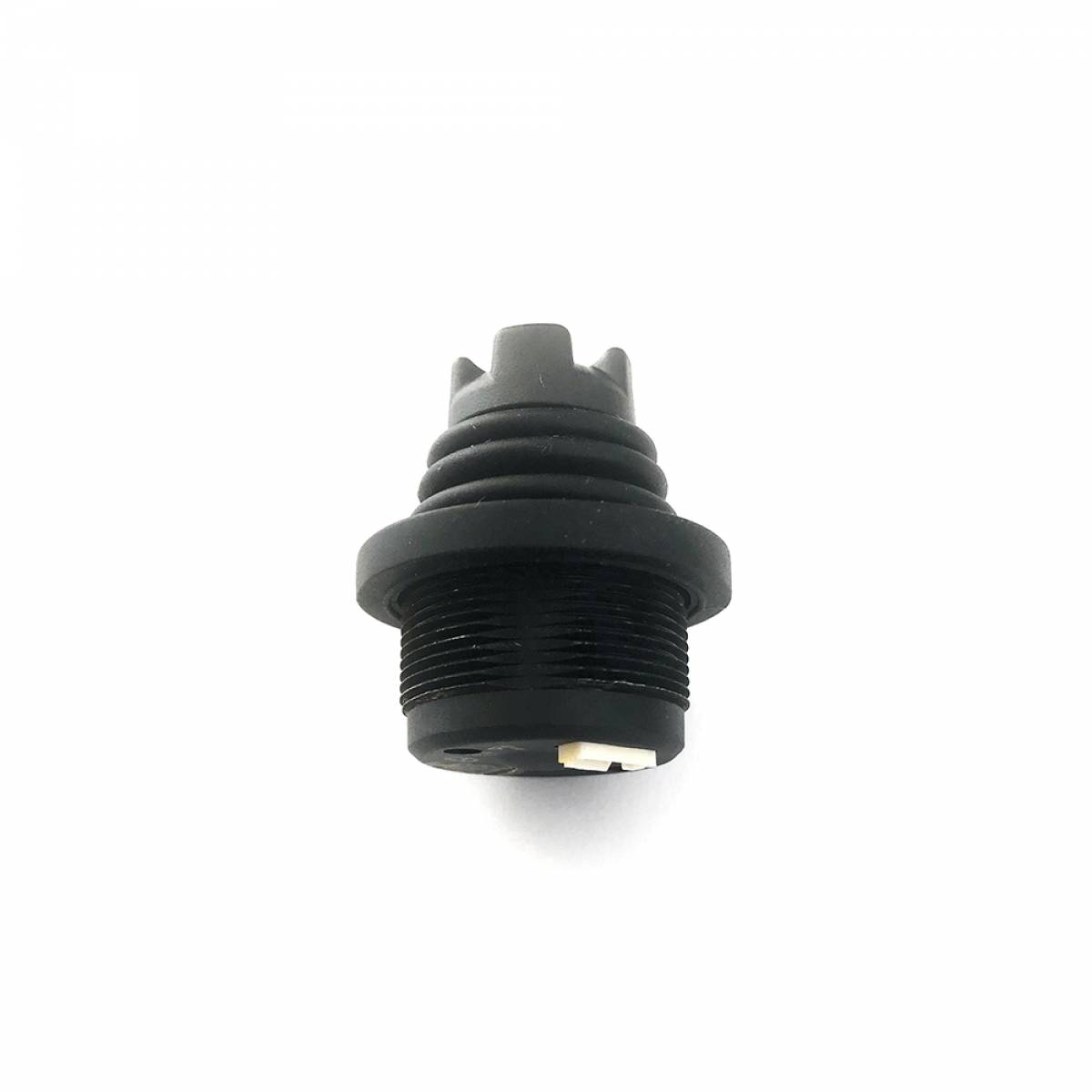

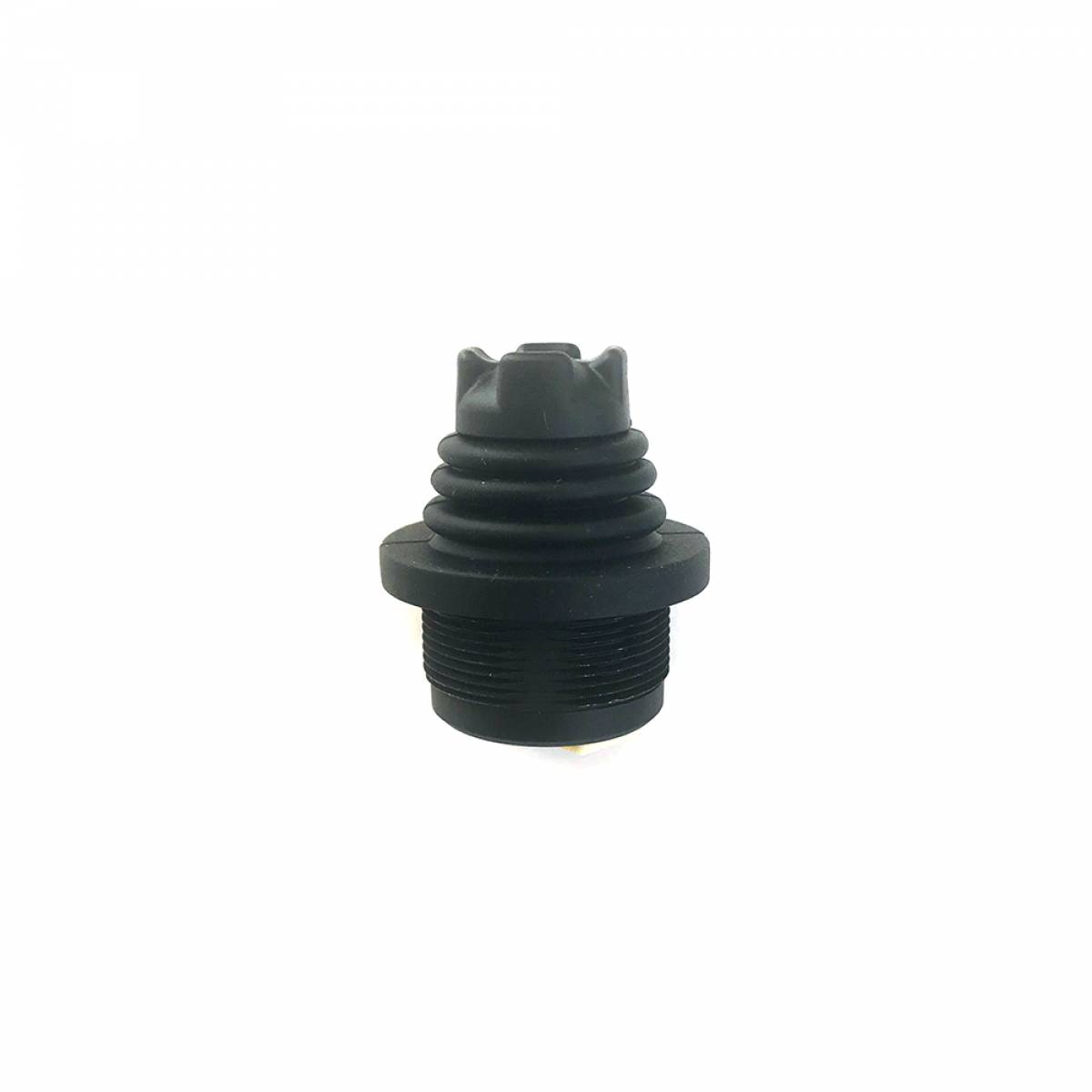

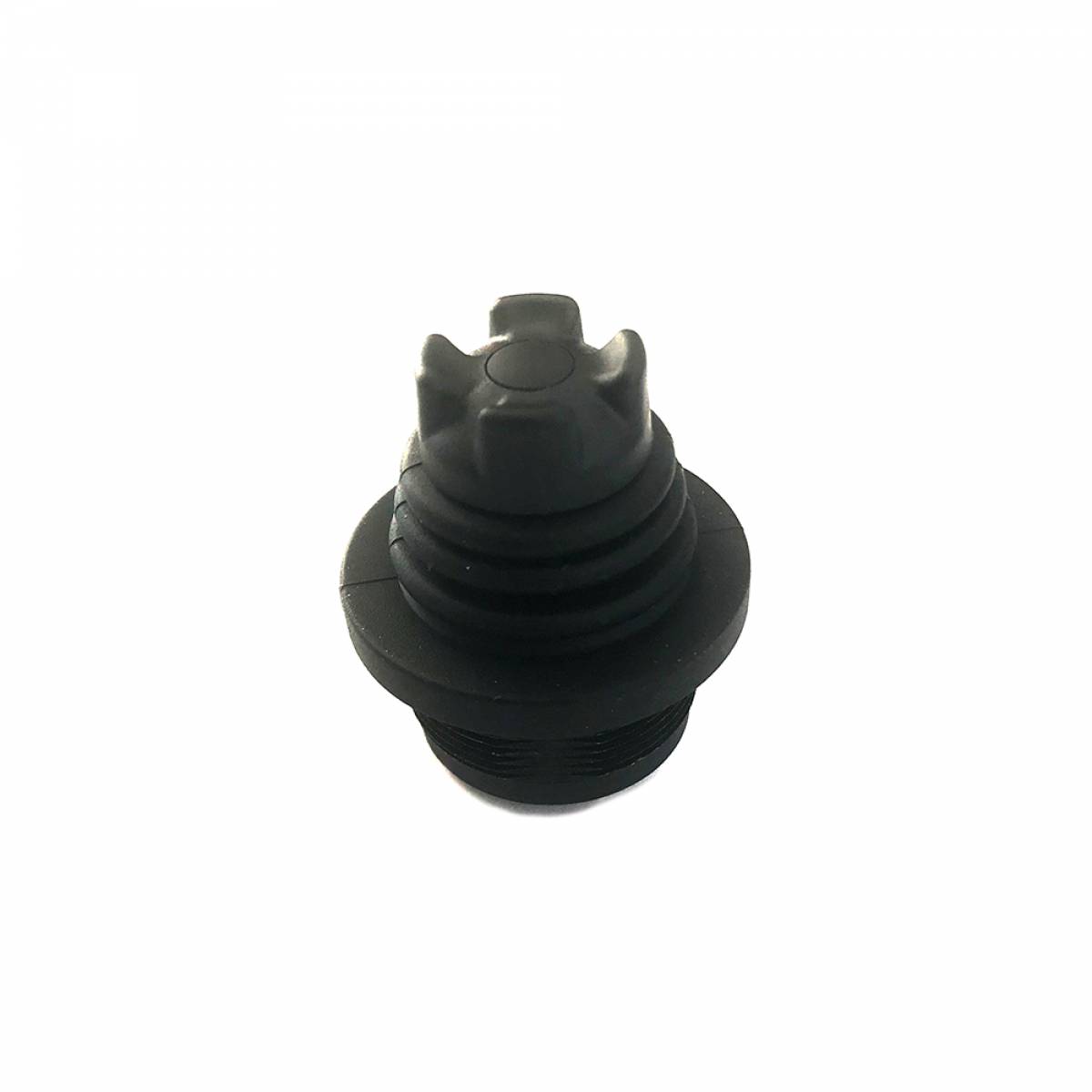

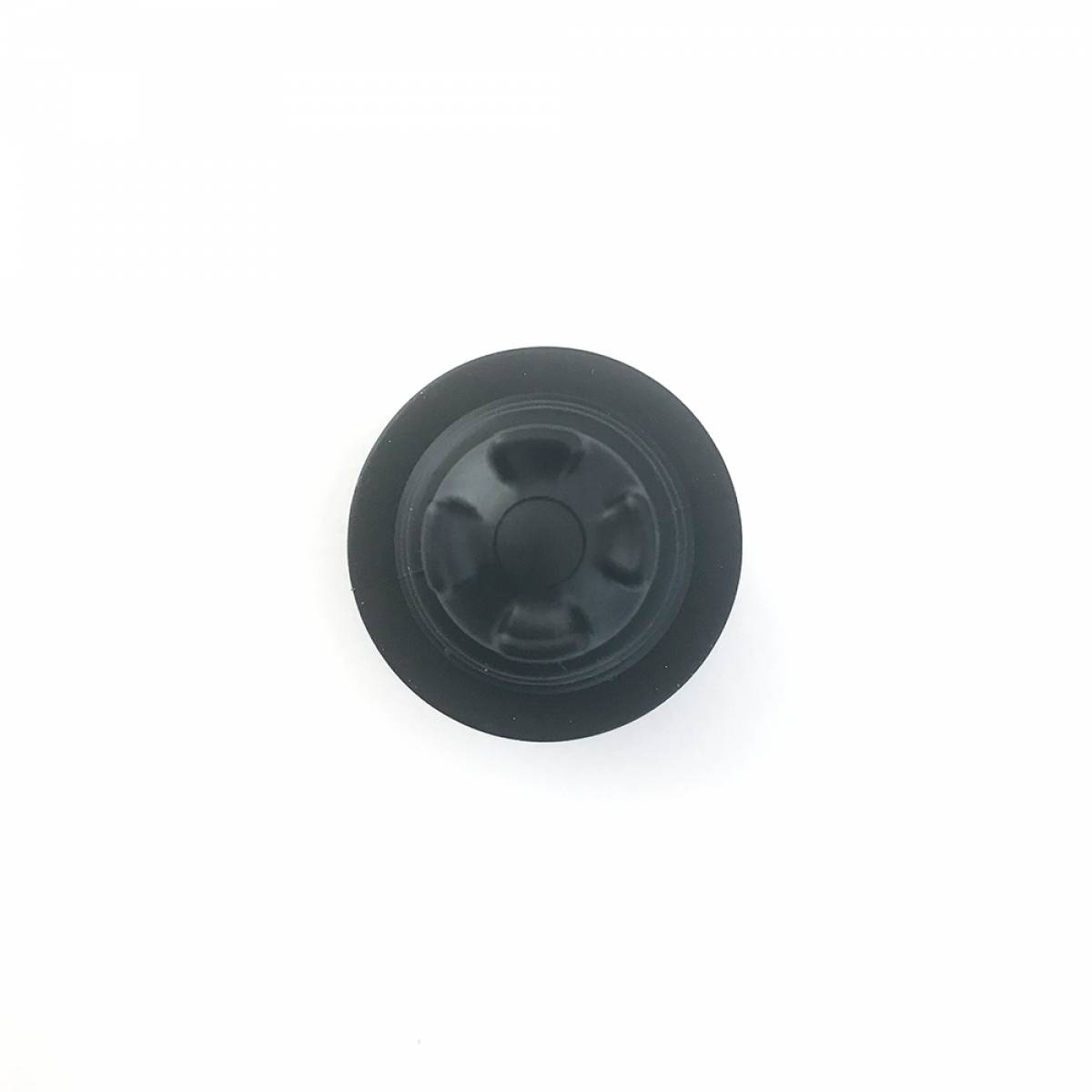

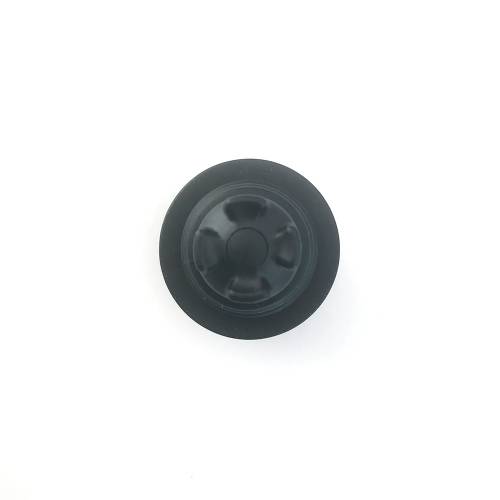

APEM HS Series 2 Axis Switch Joystick

The HS Series miniature joystick is a single pole, MOM-OFF-MOM micro switching joystick. Numerous button styles are available and the HS series may be specified for 2-way, 4-way and 5-way operation.MAIN FEATURES5-way with center pushbutton optionPositive tactile feedbackMom-off-momentary actionThreaded bush mount option.Sealed to IP68 and IP69.Connectorized housing

HS1T24SA 3D Drawing

HS Series Datasheet

144.00 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	HS
HANDLE	Castle
MOUNTING STYLE	Threaded Housing
TERMINATION	1.00mm (0.039in) Pitch Molex Connector with 10” Mating Harness
LIMITER	4-way
CONTACTS	Silver Plated
CHOOSE

We'll Call You

Tags: apem hs 2 axis joystick switch HS1T24SA

Description

GENERAL SPECIFICATION
• 5-way with center pushbutton option
• Positive tactile feedback
• Mom-off-momentary action
• Threaded bush mount option
• Sealed to IP68 and IP69
• Connectorized housing

ENVIRONMENTAL SPECIFICATIONS
• Sealing: IP68, IP69K (Drop-in mounting does not prevent panel ingress)
• Operating temperature: -25ºC to +80ºC (-13°F to +176°F)

ELECTRICAL SPECIFICATIONS
• Contact rating lifecycles :
- Gold plated (G) – 10mA @ 30VDC – 200,000 operations
- Silver plated (S) – 100mA @ 30VDC – 100,000 operations
• Mechanical life – 300,000 operations
• Insulation resistance – Min 100M? (250VDC by insulation resistance meter)
• Voltage withstand – 500VAC for 1 minute
• Contact resistance – Max 200m? (by YHP4328A)
• Electrical function – MOM-OFF-MOM

MATERIALS
• Glass filled nylon

MECHANICAL SPECIFICATIONS
• Operating Force: 5.56N±0.53N (1.25lbf±0.12lbf)1
• Maximum Vertical Load: 200N (45lbf)1
• Maximum Horizontal Load: 150N (33.7lbf)1
• Lever travel: 30° (±15º)
• Mass/weight: 17g (0.0375lb) (Option HS1DXXXA)
