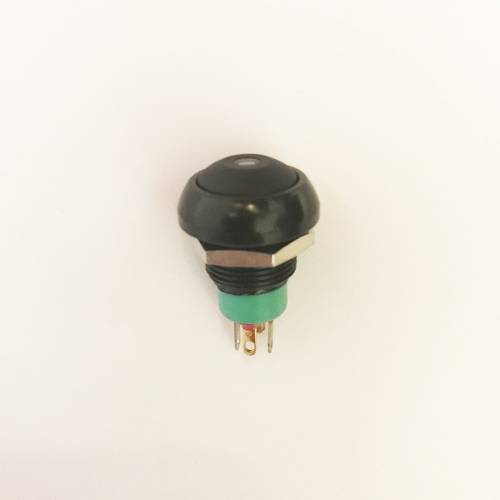

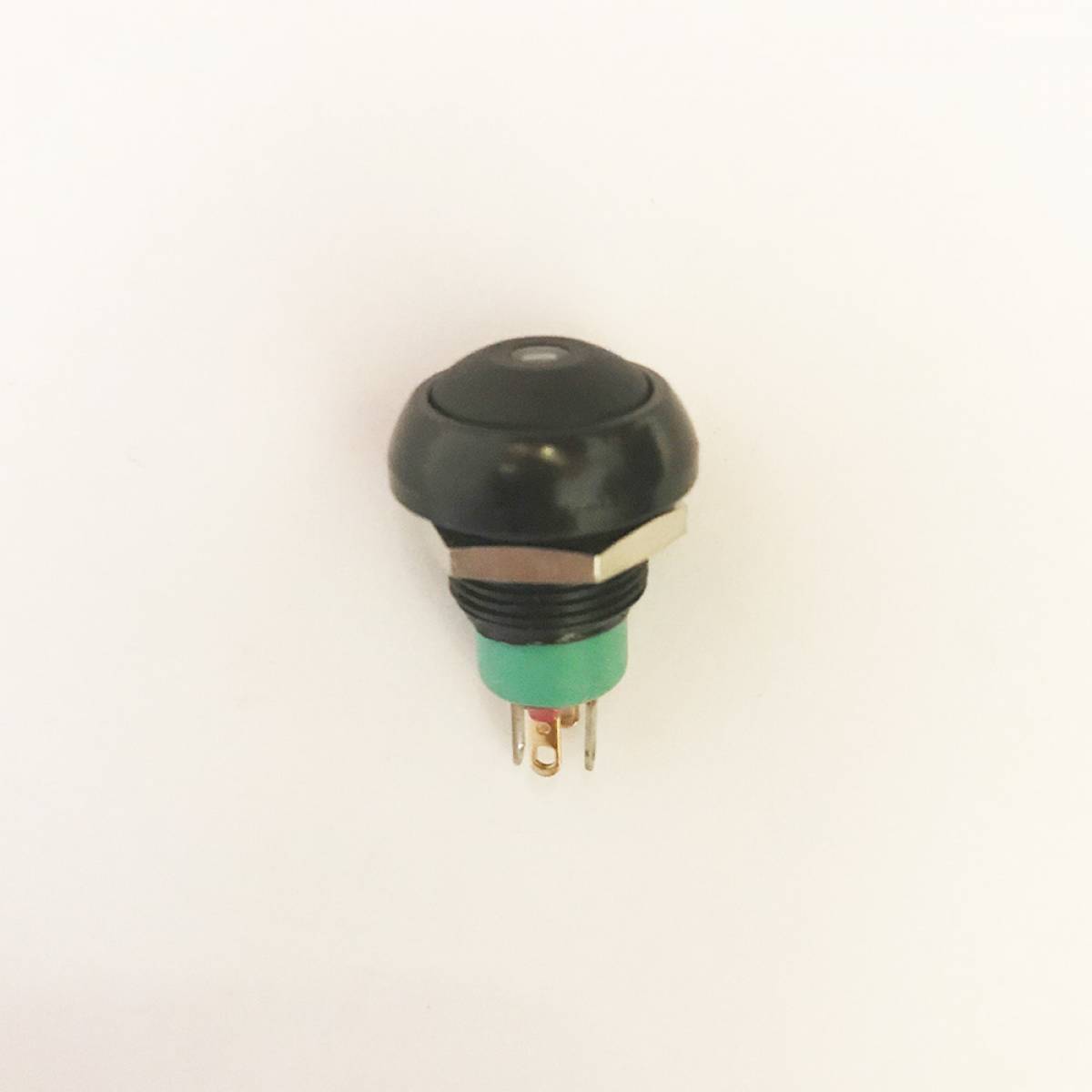

APEM IP Series 12mm Round Pushbutton with LED

Illuminated or non-illuminated latching action pushbuttons for harsh environments,
sealed to IP67 and IP69K (non-illuminated models). Round or square actuator,
available in many different colors. Numerous terminal options, gold plated silver contacts.
MAIN FEATURES
Latching action: actuator remains in the low position when ON
Illuminated and non-illuminated
Flat round actuator for optional marking
Compact: behind-panel depth less than 20 mm (.787)
High brightness illumination
Four LED colors
Tin plated LED terminals
150.43 €
Piece
Piece Unit price Total
50 16.71 € 835.50 €
100 13.53 € 1,353.00 €
250 11.82 € 2,955.00 €
500 10.64 € 5,320.00 €
750 9.54 € 7,155.00 €
Property Name Property Value
SERIES IP
ACTUATOR SHAPES Round, curved
ELECTRICAL FUNCTIONS Normally open (NO)
TERMINALS Solder lug
CONTACTS Silver, gold plated
ACTUATOR COLOR Black
LED COLOR Green
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Panel thickness: 1.5 mm (.059) min. 5.5 mm (.217) max.
    • Total travel: 2.5 mm (.098) +/- 0.3 mm
    • Typical operating force: 10 N
    • Low level/mechanical life : 200,000 cycles
    • Torque : 1.5 Nm max. applied to nut
    • Soldering : 320°C max. for 3 sec.

    ENVIRONMENTAL SPECIFICATIONS
    • Front panel sealing: IP67 according to IEC 60529
    • Shock resistance: 100 g according to IEC 512-4, test 6c
    • Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d
    • Salt spray: IEC 512-6, test 11f
    • Robustness (non-illuminated): IK06 according to EN 50102 (1 joule)
    • Operating temperature: -40°C to +85°C (-40°F to 185°F)

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load:
    4A 12VDC, 200,000 cycles
    1A 48VDC, 200,000 cycles
    2A 48VDC, 100,000 cycles
    3A 48VDC, 75,000 cycles
    1A 72VDC, 15,000 cycles
    • Initial contact resistance: 100 m? max.
    • Insulation resistance: 1 G? min. at 500VDC
    • Dielectric strength: 1.500 Vrms between terminals - 1.000 Vrms between terminals and frame

    MATERIALS
    • Case: thermoplastic, UL 94-V0
    • Actuator: polyamide 6/6
    • Bushing/bezel: zinc die-cast (zamak), black painted
    • Contacts: silver, gold plated
    • Output wires (flying lead terminals):
    F version: AWG20, section 0.6 mm2
    W version: AWG24, section 0.23 mm2
    • LED wires:
    F version: AWG26, section 0.12 mm2
    W version: AWG24, section 0.23 mm2
    • Lens: polycarbonate
    • Terminal seal: epoxy

    APPROVALS
    UL
