| Piece |
| Piece | Unit price | Total |
|---|---|---|
| 40 | 19.05 € | 762.00 € |
| 120 | 15.42 € | 1,850.40 € |
| 280 | 13.47 € | 3,771.60 € |
| 520 | 12.13 € | 6,307.60 € |
| 760 | 10.87 € | 8,261.20 € |
| Property Name | Property Value |
|---|---|

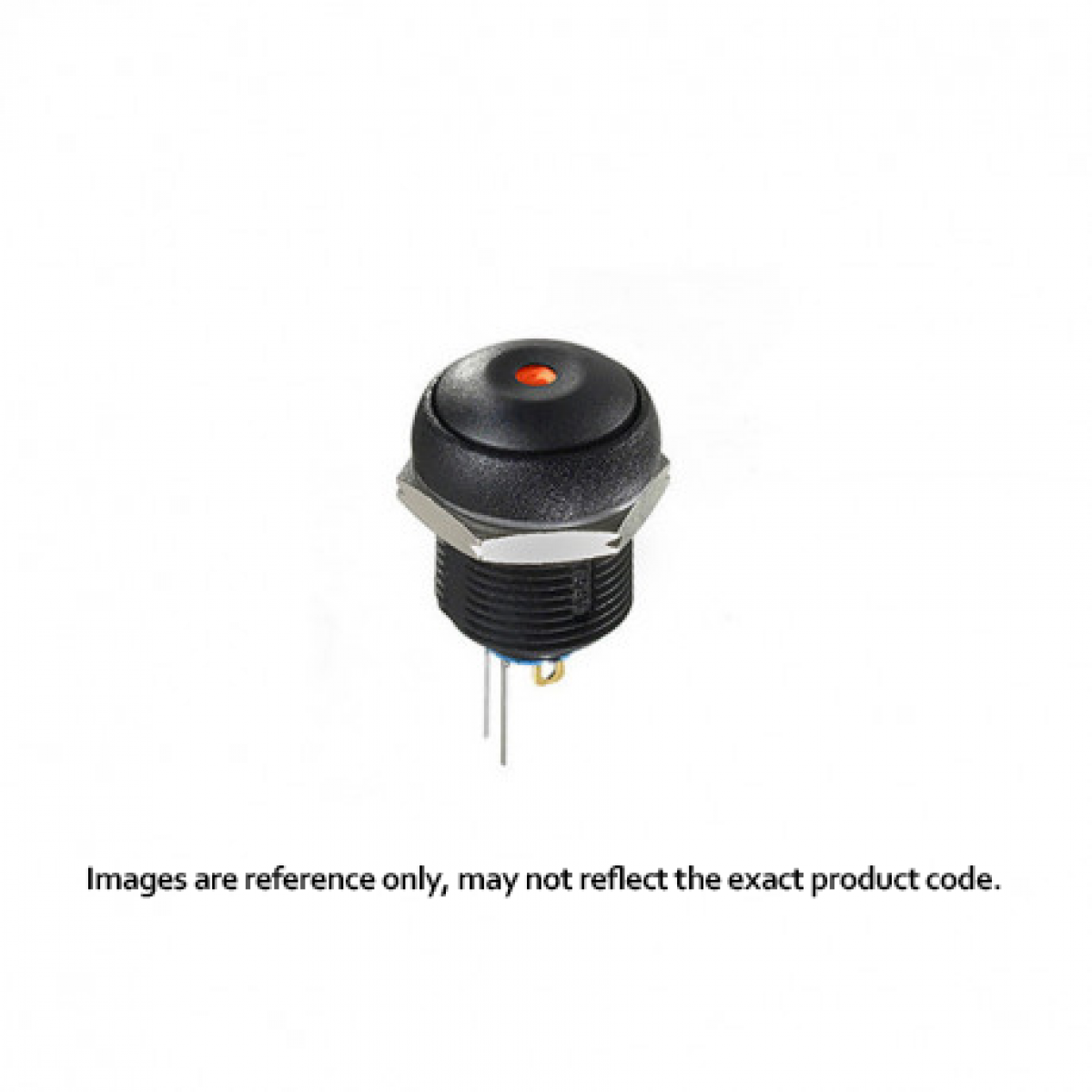

| SERIES | IR |
| ACTUATOR SHAPES | Round, curved |
| ELECTRICAL FUNCTIONS | Normally open (NO) |
| TERMINALS | Solder lug |
| CONTACTS | Silver, gold plated (100 mA 24 VDC) |
| ACTUATOR COLOR | Black |
| BUSHING AND BEZEL | Black (std) |
| ILLUMINATION | Non-illuminated |
| LED COLOR | Non-illuminated |
GENERAL SPECIFICATION
• Panel thickness: 8 mm (.314) max.
• Total travel: 2.5 mm (.098) +/- 0,3 mm
• Typical operating force: 5 N +/- 2 N
• Low level or mechanical life: 200,000 cycles
• Torque: 0.8 Nm max. applied to nut
• Soldering: 320 °C max. for 3 sec.
ENVIRONMENTAL SPECIFICATIONS
• Front panel sealing: IP67 according to IEC 60529
• Shock resistance: 100 g according to IEC 512-4, test 6c
• Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d
• Salt spray: IEC 512-6, test 11f
• Operating temperature: -40 °C to +85 °C
(-40 °F to 185 °F)
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load (gold plated contacts):
- Code 4: 100 mA 24 VDC, 200,000 cycles
- Code 7: 4 A 12VDC, 200,000 cycles
1 A 48 VDC, 200,000 cycles
3 A 48 VDC, 75,000 cycles
• Initial contact resistance: 100 m? max.
• Insulation resistance: 1 G? min. at 500 VDC
• Dielectric strength: 1,500 Vrms between terminals
MATERIALS
• Case: thermoplastic UL94-V0
• Plunger: polyamide
• Bushing/bezel: polyamide
• Contacts: silver, gold plated (codes 4 and 7)
• Multi-wire lead AWG20, section 0.6 mm2
• LED wire: AWG26, section 0.12 mm2
• Lens: polycarbonate
• Terminal seal: epoxy
