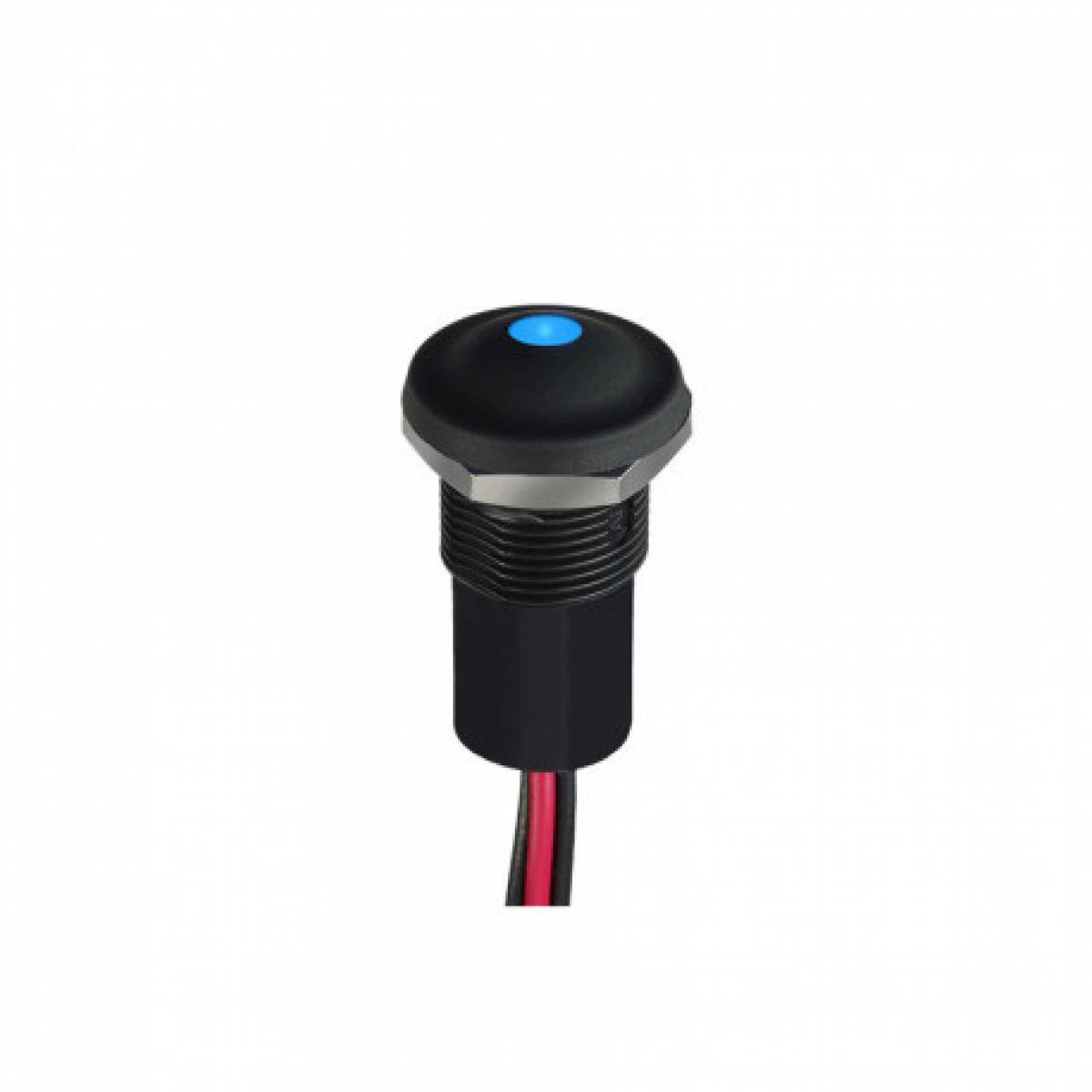

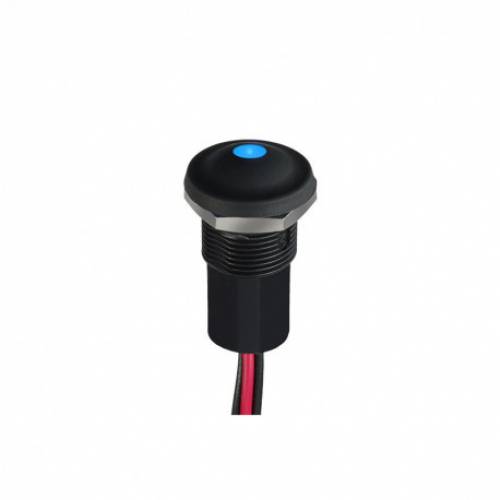

APEM IX Series NO Black Pushbutton Switch

APEM’s popular I series range of pushbuttons is now evolving with the new IX series,
designed to meet demanding markets.
The IX series combines the high qualities of the IP and IA series
with a backlit switch and 12 mm diameter compact bushing and
flexible elastomer membrane actuator.
IX series is recommended for harsh environments and
all key markets of APEM: material handling, agriculture machinery, defense, …

KEY FEATURES

Pushbutton for harsh environment
Illuminated or non-illuminated
Compact (12 mm bushing)
Tactile effect
Sealing : IP67, IP69K
Marking on request

IX Series Datasheet

8.64 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	IX
ACTUATOR SHAPES	Round, elastomeric membrane
ELECTRICAL FUNCTIONS	Normally open (NO)
TERMINALS	Solder lug
CONTACTS	Gold Plated
ACTUATOR COLOR	Black
LED COLOR	Non-illuminated
MARKING STYLE	No marking
MARKING	No marking

We'll Call You

Description

GENERAL SPECIFICATION
• Panel thickness : 1.5 to 6 mm
• Total travel : 2 mm (.078) ± 0.3 mm
• Typical operating force : 7 N ± 2 N
• Low level/mech. life : 1,000,000 cycles
• Torque : 0.5 Nm (0.6 Nm max.) applied to nut
• Soldering : 320 °C (608 °F) max. for 3 sec.

ENVIRONMENTAL SPECIFICATIONS
• Operating and storage temperature : -40 °C to +85 °C (-40 °F to +185 °F)
• Front panel sealing : IP67 according to IEC 60529, IP69K according to DIN 40050-9
• Shock resistance: 100 g according to IEC 512-4, test 6c
• Salt spray: IEC 512-6, test 11f

ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load:
- Gold plated contact (0): 100 mA 28 VDC, 1,000,000 cycles
- Silver contact (1): 2 A 28 VDC, 100,000 cycles
• Initial contact resistance : 100 m? max.
• Insulation resistance : 1 G? min. at 500 VDC
• Dielectric strength : 1,500 Vrms
• Contact bounce : 10 ms

MATERIALS
• Case : thermoplastic UL94-V0
• Actuator : silicone
• Bushing : ABS UL94 HB
• Contacts :
0 : brass, gold plated
1 : silver
• Output wires : AWG24, section 0.23 mm2 - 500 mm
• Terminal seal : epoxy
