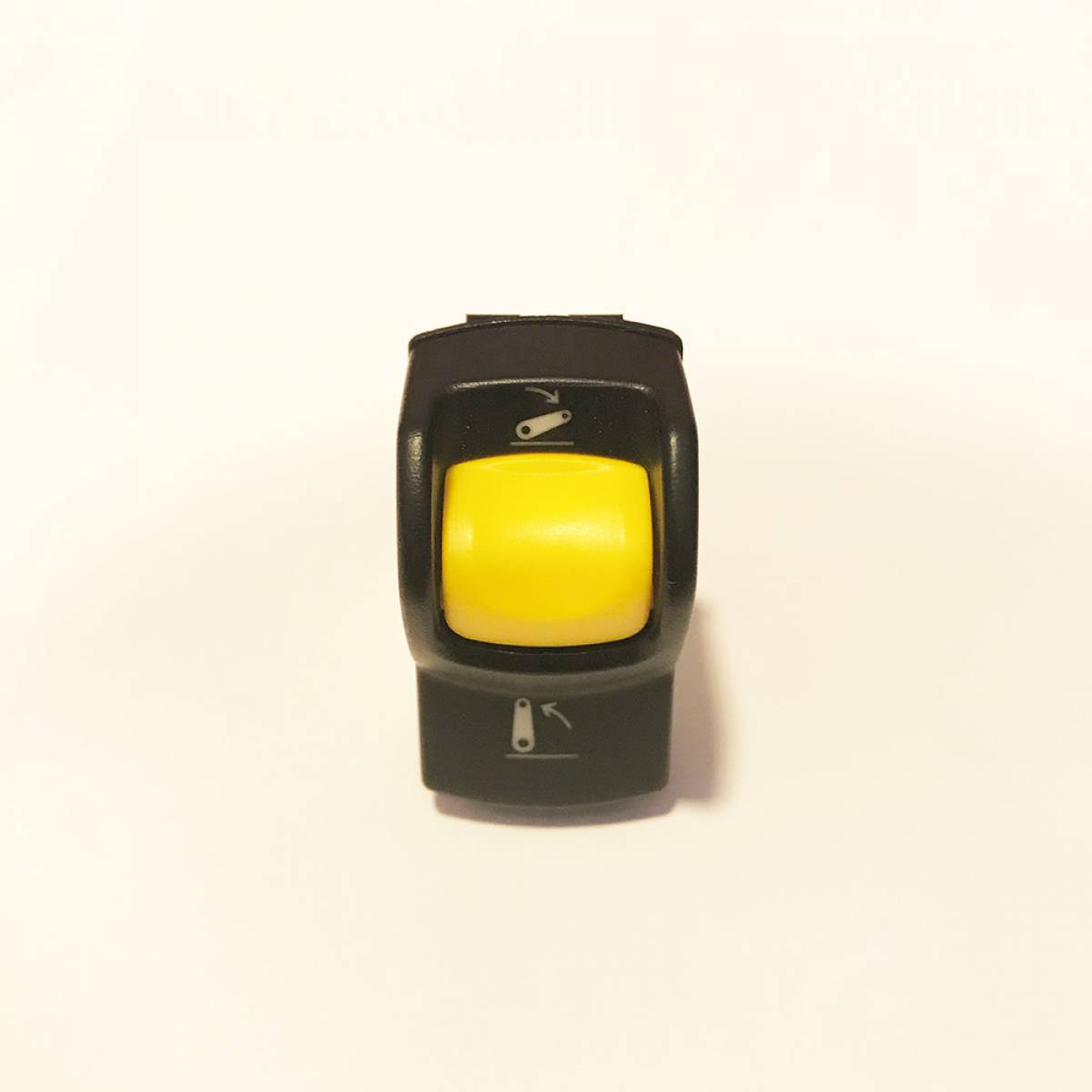

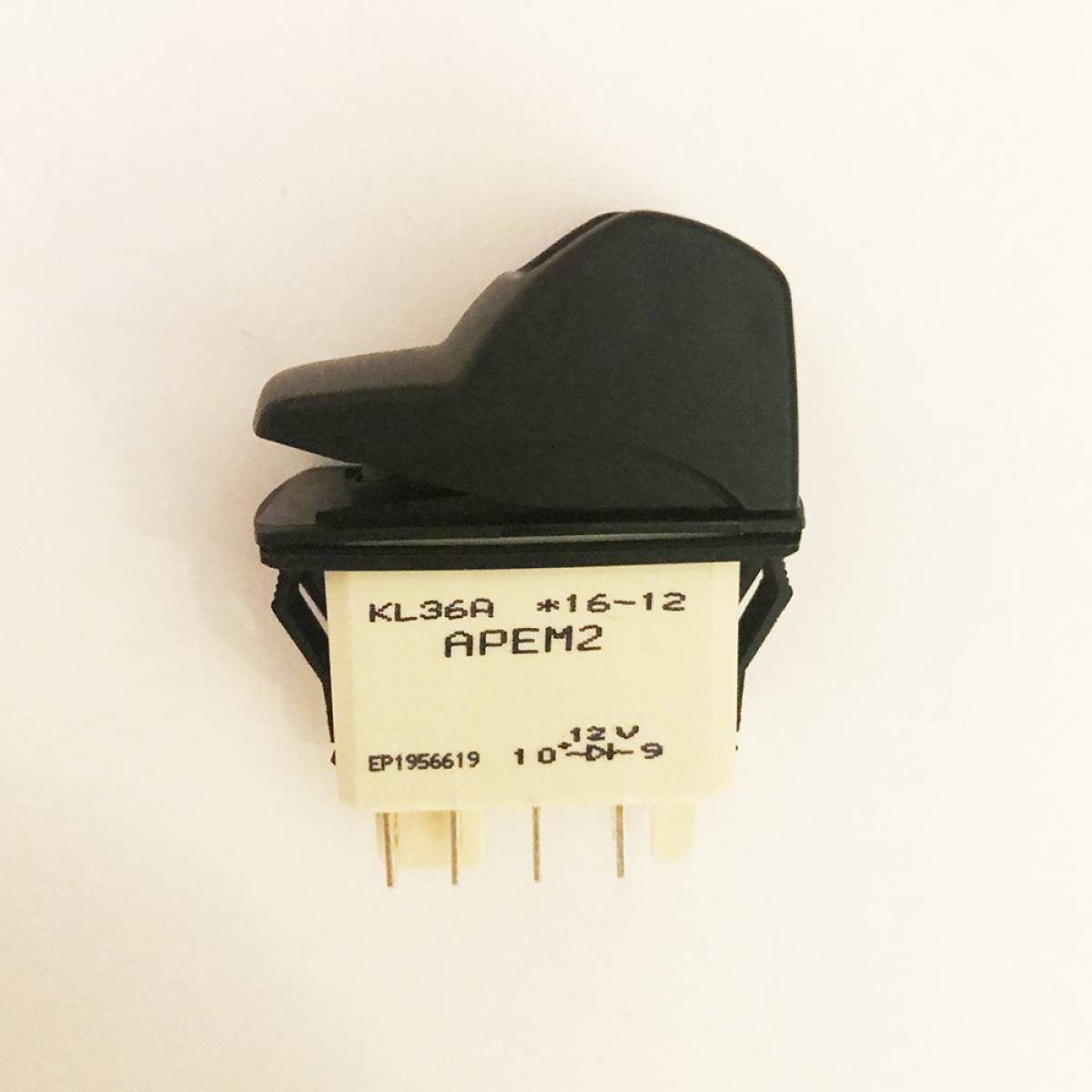

GENERAL SPECIFICATION
• Mechanical life : 150,000 cycles min.
• Panel thickness : 0.8 mm to 4.6 mm
• Recommended panel thickness : between 2 mm and 3.5 mm
ENVIRONMENTAL SPECIFICATIONS
• Sealing options :
K : IP68 to front panel components of switch only according to IEC 60529
Z : IP69K panel sealing according to DIN 40050-9
• Salt spray resistance : 96 hours according to IEC 512-6, test 11f
• Operating temperature :-40 °C to +85 °C (-40 °F to +185 °F)
ELECTRICAL SPECIFICATIONS
• Currrent/voltage rating with resistive load :
- Silver plated contacts :
A : 5 A 24 VDC, 100,000 cycles - 10 A 24 VDC, 10,000 cycles (terminals 6.35 x 0.8 only)
S : 20 A 12 VDC, 10,000 cycles
- Gold plated contacts (D) : 20 mA 12 V, 150,000 cycles
• Initial contact resistance : 10 m? max.
• Insulation resistance : 1,000 M? min. at 500 VDC
• Dielectric strength : 2,000 Vrms 50 Hz min. between terminals
MATERIALS
• Case : PA 6-6
• Actuator and unlocking actuator : ABS or elastomeric membrane
• Bezel : PA 6-6
• Contacts & terminals : brass, solid silver grain, silver plated (A) or brass, solid silver grain, gold plated (D)
• Contact roller : brass, nickel plated
