QS121KKR24

Print this page
Description
  • Brand APEM
  • Product CodeQS121KKR24
  • Stock Status63
  • Stock63

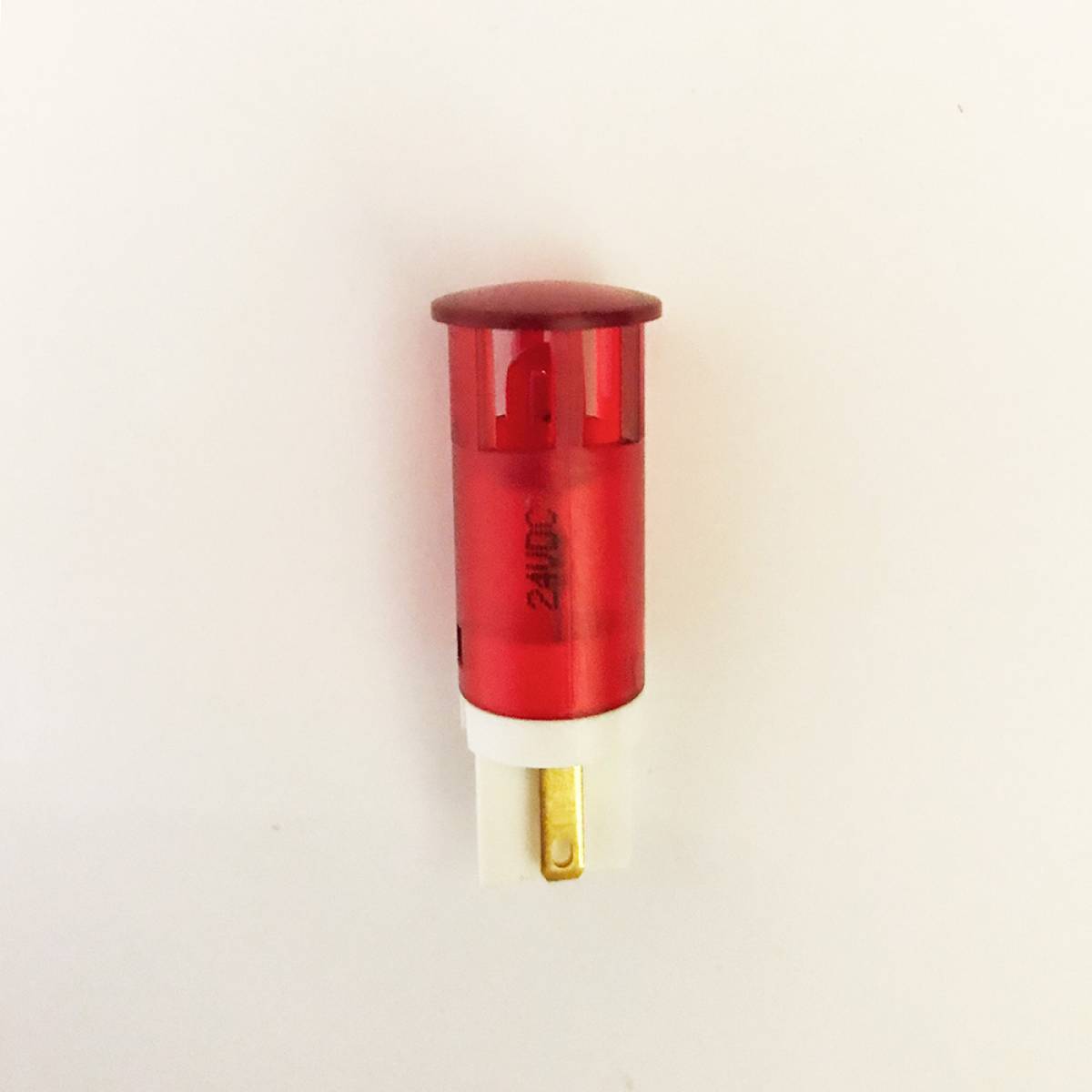

APEM QS Series 12mm Red 24V LED

Snap in panel mount LED indicators with colored diffused flat lens,
for typical replacement of filament and neon indicators.

MAIN FEATURES
Ø6 mm, 8 mm, 10 mm and 12 mm cut-out sizes
Front panel snap-in mounting requires no additional hardware
Coloured diffused flat lenses
Available colors: Red, Green, Yellow, Blue, Orange, White (clear)
Voltage range: 2 VDC – 220 VAC
Terminations: solder lug/faston, 6 mm (2.0 x 0.5 mm), 8 mm, 10 mm, 12 mm (2.8 x 0.8 mm) or wires
(200 mm standard length)Standard intensity diffused LEDs or high brightness LEDs for daylight viewing
Bi-color LED option
UL496 recognised component
TYPICAL APPLICATIONS
Domestic and Commercial white goods
Catering Equipment
Fire Alarm panels
Power distribution sockets
Battery chargers / Power supplies
14.40 €
Piece
Piece Unit price Total
Property Name Property Value
SERIES QS
SERIES QS
MOUNTING HOLE Ø12 mm
TERMINALS Solder lug/faston
TYPE OF ILLUMINATION Flashing light (12 - 28 VDC)
LED COLOR Red
VOLTAGE 24 VDC
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Max Reverse Voltage: 5V
    • Viewing Angle: 30–100° (dependant on model)
    • Life Expectancy: 100,000 hours
    • Operating Temperature Range: –40 to +85°C

    ELECTRICAL SPECIFICATIONS
    • 02 (No Resistor) 1.8 to 2.5VDC 20mA max*
    • 6VDC 5.4 to 6.6VDC 20mA
    • 12VDC 10.8 to 13.2VDC 20mA
    • 24VDC 21.6 to 26.4VDC 20mA
    • 28VDC 25.2 to 30.8VDC 20mA
    • 110VAC (not available on QS6) 99 to 110VAC 6mA
    • 220VAC (not available on QS6) 207 to 253VAC 3mA

    MATERIALS
    • Coloured moulded polycarbonate body
