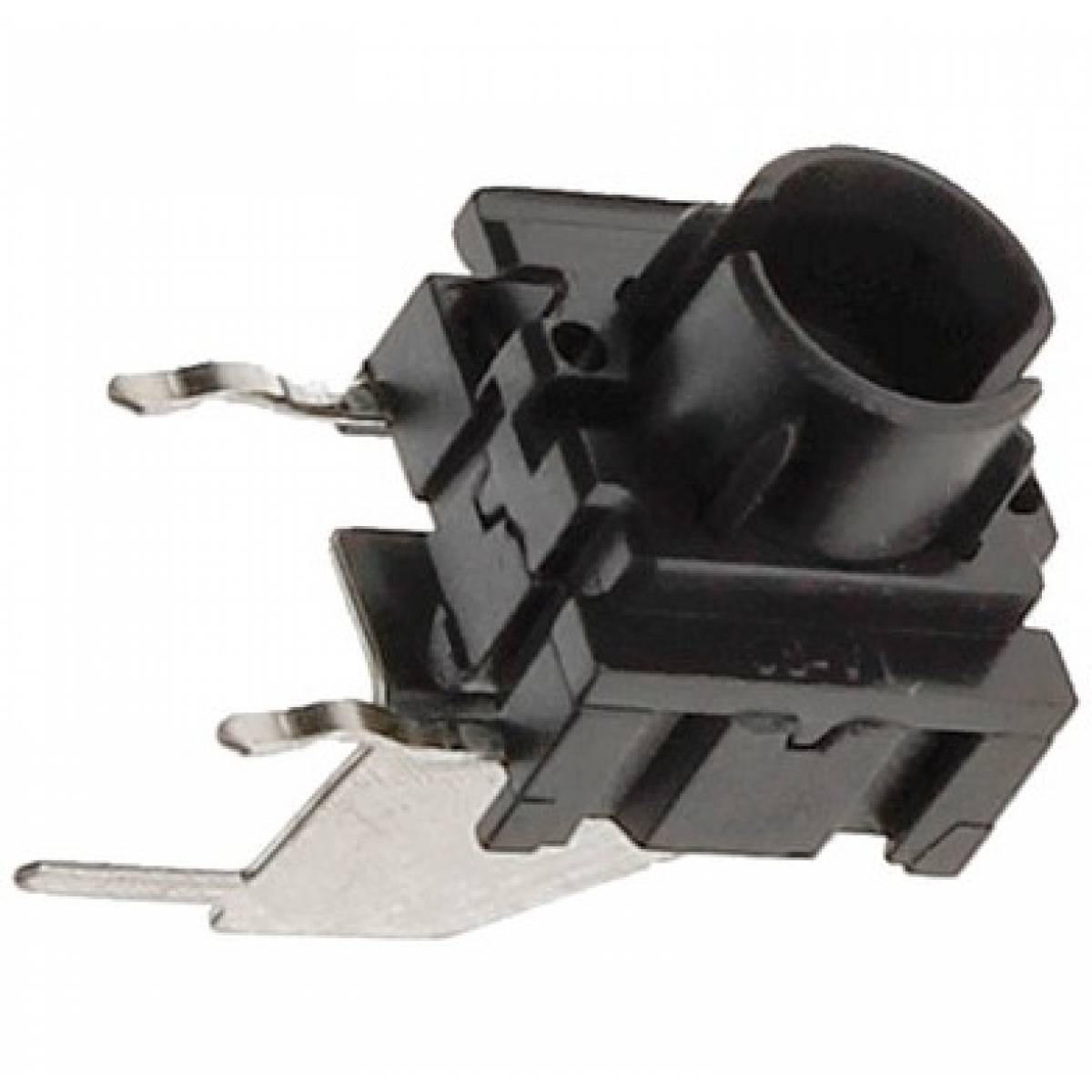

MEC 3F SeriesThrough Hole Switch

Multimec™ 3F series has an actuator extended out of the switch body and
slide-on cap retention system. It also has a right angle version with an optional LED.

Caps that can be mounted on Multimec™ 3F: 1D, 1E, 1F, 1GA, 1GC, 1K,
1KB, 1KC, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1WA, 1WD, 1WP, 1X and 1ZC.

MAIN FEATURES
h=10.4 mm
10 x 10 mm
Momentary NO
IP67 sealing
10,000,000 cycle
SMD, TH or through-hole RAS
illumination possibility
2.53 €
Piece
Piece Unit price Total
Property Name Property Value
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Through-hole (TH) or surface mount (SMD) or right angle through-hole
    • 50 mA / 24 VDC
    • Single pole/momentary
    • 10,000,000 operations lifetime
    • Temperature range: -40/+160 °C
    • IP67 sealing
    • Actuation force: 3.5 N

    ENVIRONMENTAL SPECIFICATIONS
    • Working temperature: -40/+160 °C
    • Storage temperature: -40/+160 °C
    • Soldering(TH): IEC 68-2-20
    • Soldering (SMD): JEDEC J-STD-020C
    • ENVIRONMENTAL ENDURANCE IEC 68-2-3
    • Temperature: +40 °C
    • Humidity: 93% RH
    • Duration: 56 Days
    • TEMPERATURE CYCLING IEC 68-2-14
    • Temperature limit: -55/+85 °C
    • Number of cycles: 200
    • Exposure time at each temperature: 10 min
    • Recovery time before measurements: 16 hrs
    • Sealing IEC 529: IP67

    ELECTRICAL SPECIFICATIONS
    • Contact resistance: <30 m ? - typ. 10 m ?
    • Insulation resistance: >10 M ?
    • Recommended load:
    Silver: 0.5 - 50 mA 24 VDC
    Gold: 0.5µ - 50 mA 24 VDC
    • Contact bounce: <2 mS - typically 0.5 mS

    MATERIALS
    Housing: PPS UL94V0
    • Actuator: PPS UL94V0
    • Sealing + spring: Silicone rubber
    • Contact spring:
    Silver: Stainless steel (+ 3µAg)
    Gold: Stainless steel (+ 1µAu)
    • Fixed contacts:
    Silver - SnCu + 2µNI + 3µAg
    Gold - SnCu + 2µNI + 1µAu
    Terminals: SnCu + 2µNI + 3µSn100

    MECHANICAL SPECIFICATIONS
    • Standard actuation force: 3.5 N typ
    • Max. Actuation force: 100 N for 10 sec
    • Key travel: 1 mm
    • Lifetime: >10,000,000
