Description
  • Brand APEM
  • Product Code5GTH935
  • Stock StatusPre-order
  • Stock0

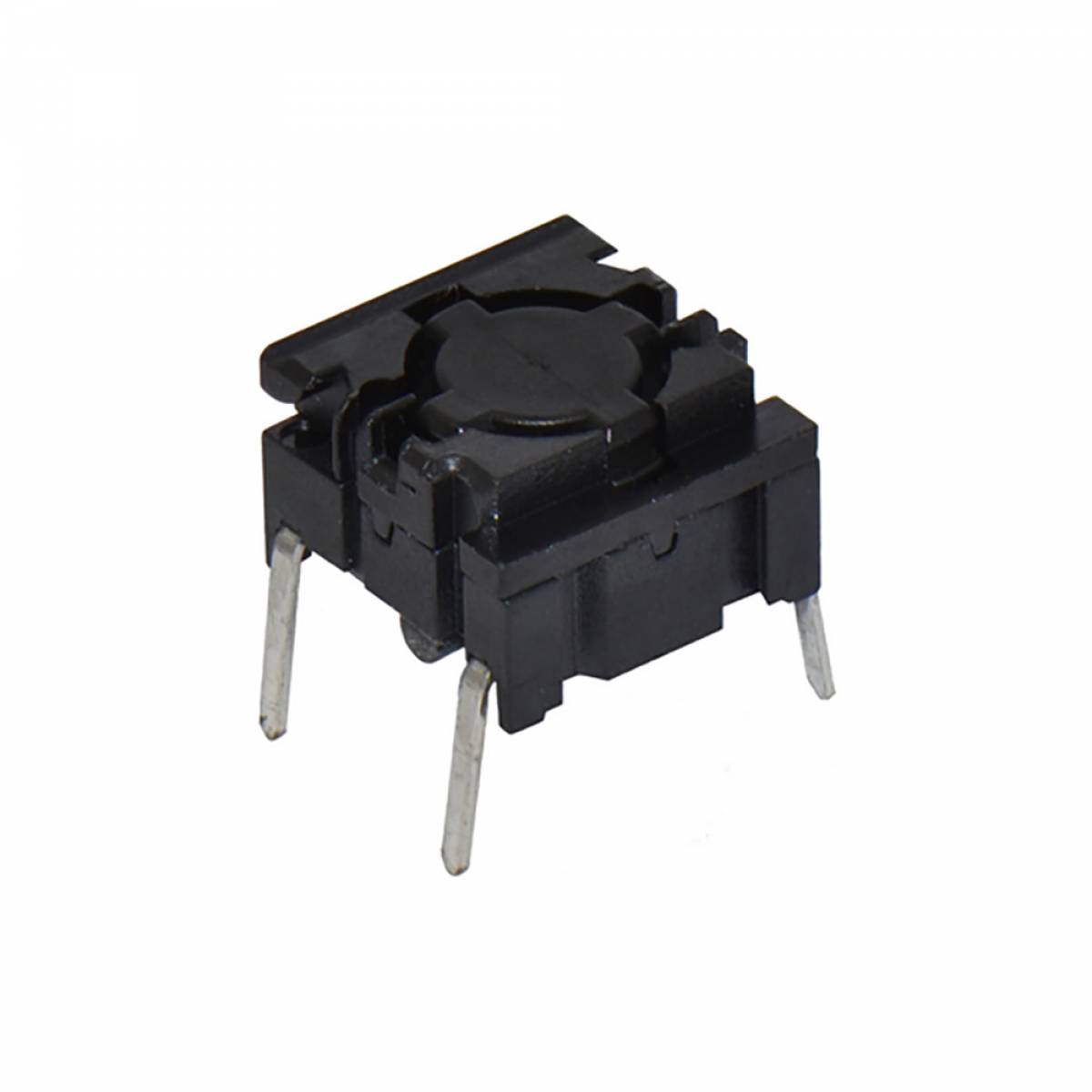

MEC 5G Series Through Hole Switch

Multimec™ 5G switch has a large diameter snap-on cap retention system
and an actuator levelled with the switch body. The switch series has
3 standard actuation forces and is only available in high temperature
material in order to stand today´s advanced soldering processes.
Furthermore, the switch can be supplied with one or two LEDs
integrated on it in order to provide excellent illumination.
Night vision (NVIS) LEDs are also available.

Caps that fit Multimec™ 5G switches: 1A, 1B, 1C, 1DS, 1ES, 1FS, 1GAS,
1GCS, 1H, 1IS, 1JS, 1KS, 1KBS, 1KCS, 1LS, 1M, 1NS, 1PS, 1QS, 1RS, 1SS,
1TS, 1US, 1VS, 1WAS, 1WDS, 1WPS, 1XS, 1ZA, 1ZB, 1ZCS, 1Z, 1ZW and Aquamec™.

MAIN FEATURES
h=6.4 mm
10 x 10 mm
Momentary
NO or NC/NO (NC/NO function is not sold in Japan)
IP67 sealing
10,000,000 cycles
SMD, TH or through-hole RAS
illumination possibility
3.36 €
Piece
Piece Unit price Total
Property Name Property Value
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Through-hole (TH) or surface mount (SMD) or non-illuminated right angle though-hole
    • 50 mA / 24 VDC
    • Single pole/momentary
    • 10,000,000 operations lifetime (NO function)
    • Temperature range:
    Switch: -40/+160 °C
    LED: -40/+85°C
    • IP67 sealing
    • Actuation force: 2.0 N, 3.5 N, 6.5 N
    • NO or NC/NO (NC/NO function is not sold in Japan)

    ENVIRONMENTAL SPECIFICATIONS
    • Working temperature: -40/+160 °C
    • Storage temperature: -40/+160 °C
    • 5G with LED (working & storage temp): Min -30 °C Max +85 °C
    • Soldering (TH): IEC 68-2-20 8
    • Soldering (SMD): JEDEC J-STD-020C
    • ENVIRONMETAL ENDURANCE IEC 68-2-3
    • Temperature: +40 °C
    • Humidity: 93% RH
    • Duration: 56 Days
    • TEMPERATURE CYCLING IEC 68-2-14
    • Temperature limit: -55/+85 °C
    • Number of cycles: 200
    • Exposure time at each temperature: 10 min
    • Recovery time before measurements: 16 hrs
    • Sealing IEC 529: IP67

    ELECTRICAL SPECIFICATIONS
    • Contact resistance: <30 m ? - typ. 10 m ?
    • Insulation resistance: >10 M ?
    • Recommended load:
    Silver- 0.5µ - 50 mA 24 VDC
    Gold - 0.5µ - 50 mA 24 VDC
    • Contact bounce: <2 mS - typically 0.5 mS

    MATERIALS
    • Housing: PPS UL94V0
    • Actuator: PPS UL94V0
    • Sealing + spring: Silicone rubber
    • Contact spring:
    Silver - Stainless steel: + 3µAg
    Gold - Stainless steel + 1µAu
    • Fixed contacts:
    Silver - SnCu + 2µNi + 3µAg
    Gold - SnCu + 2µNi + 1µAu
    Terminals: SnCu + 2µNi + 3µSn100

    MECHANICAL SPECIFICATIONS
    • Standard actuation force (switch):
    NO - 2.0 N, 3.5 N, 6.5 N
    Quiet - 2.0 N
    NC/NO - 3.5 N
    • Max. Actuation force without cap:
    NO - 115 N for 60 sec (according to MIL-PRF-22885H)
    NC/NO - 100 N for 10 sec
    • Key travel (switch): 1 mm
    • Lifetime:
    NO - >10,000,000 cycles
    NC/NO - >1,000,000 cycles

    APPROVALS
    MIL-STD
