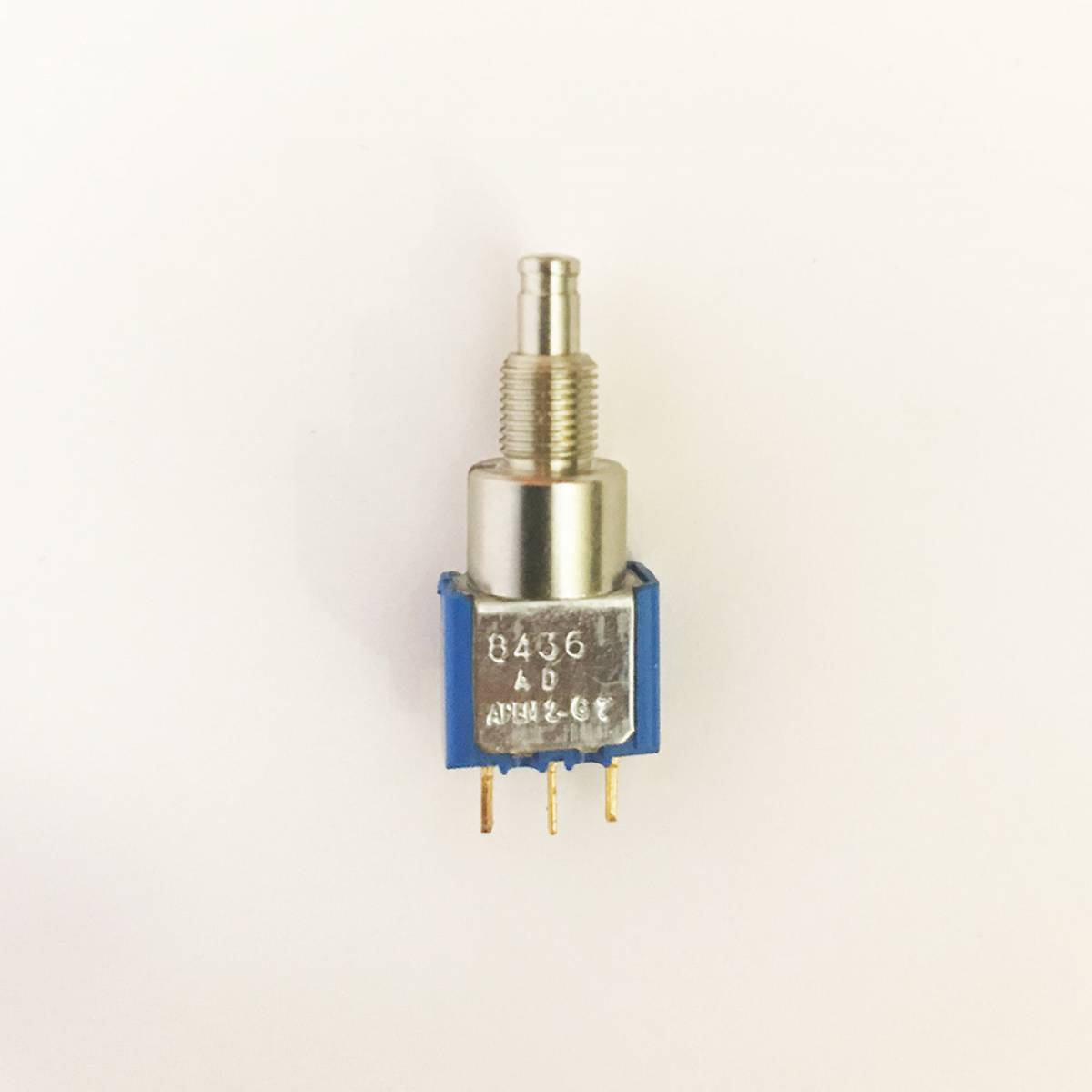

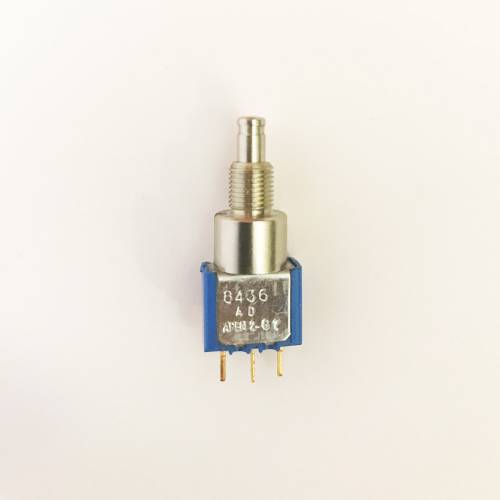

APEM 8000 Series Single Pole PCB Pin Pushbutton

Momentary or alternate action pushbutton switches.
Button returns in upper position after actuation

MAIN FEATURES
with bushing Ø6.35 mm (1/4) and Ø11.9 mm (15/32).
Single pole and double pole models,
momentary or latching action,
solder lug or PC terminals.
Ratings up to 6 amps,
UL option
numerous plunger, bushing and accessory options.

8436AD 3D Drawing

8000 Series Datashee

SERIES

71.04 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
50	7.89 €	394.50 €
100	4.92 €	492.00 €
1000	3.72 €	3,720.00 €

Property Name	Property Value
SERIES	8000
TERMINALS AND BUSHINGS	Straight PC or right angle terminals
NUMBER OF POLES	Single Pole
ELECTRICAL FUNCTIONS	ON - ON
TERMINALS	Solder lugs or straight PC depending on model
CONTACT MATERIALS	Silver, gold plated
SEALING	No sealing
PLUNGERS	Height 8,6 (.338) For bushing Ø 11,9 (15/32)

We'll Call You

Description

GENERAL SPECIFICATION

• Torque : 1.25 Nm (.922 Ft.lb) max. applied to nut

• Total travel : 2.70 mm (.106)

ENVIRONMENTAL SPECIFICATIONS

• Operating temperature : -40 °C to +85 °C

ELECTRICAL SPECIFICATIONS

• Max. current/voltage rating with resistive load :

- silver contacts : 4 A 30 VDC

- gold plated contacts : 0.4 VA max. 20 VAC or DC

• Initial contact resistance : 10 m? max.

• Insulation resistance : 1,000 M? min. at 500 VDC

• Dielectric strength :

- 1,000 Vrms 50 Hz min. between terminals

- 2,000 Vrms 50 Hz min. between terminals and frame

• Electrical life : 30,000 cycles at full load

MATERIALS

• Case : diallylphthalate (DAP)

• Actuator : brass, nickel plated

• Bushing : brass, nickel plated

• Housing : stainless steel

• Contacts

A : silver

AD : silver, gold plated

CD : brass, gold plated

• Terminal seal : epoxy

APPROVALS

UL
