Description
  • Brand APEM
  • Product CodeFPAR1C1262E1213
  • Stock Status75
  • Stock75

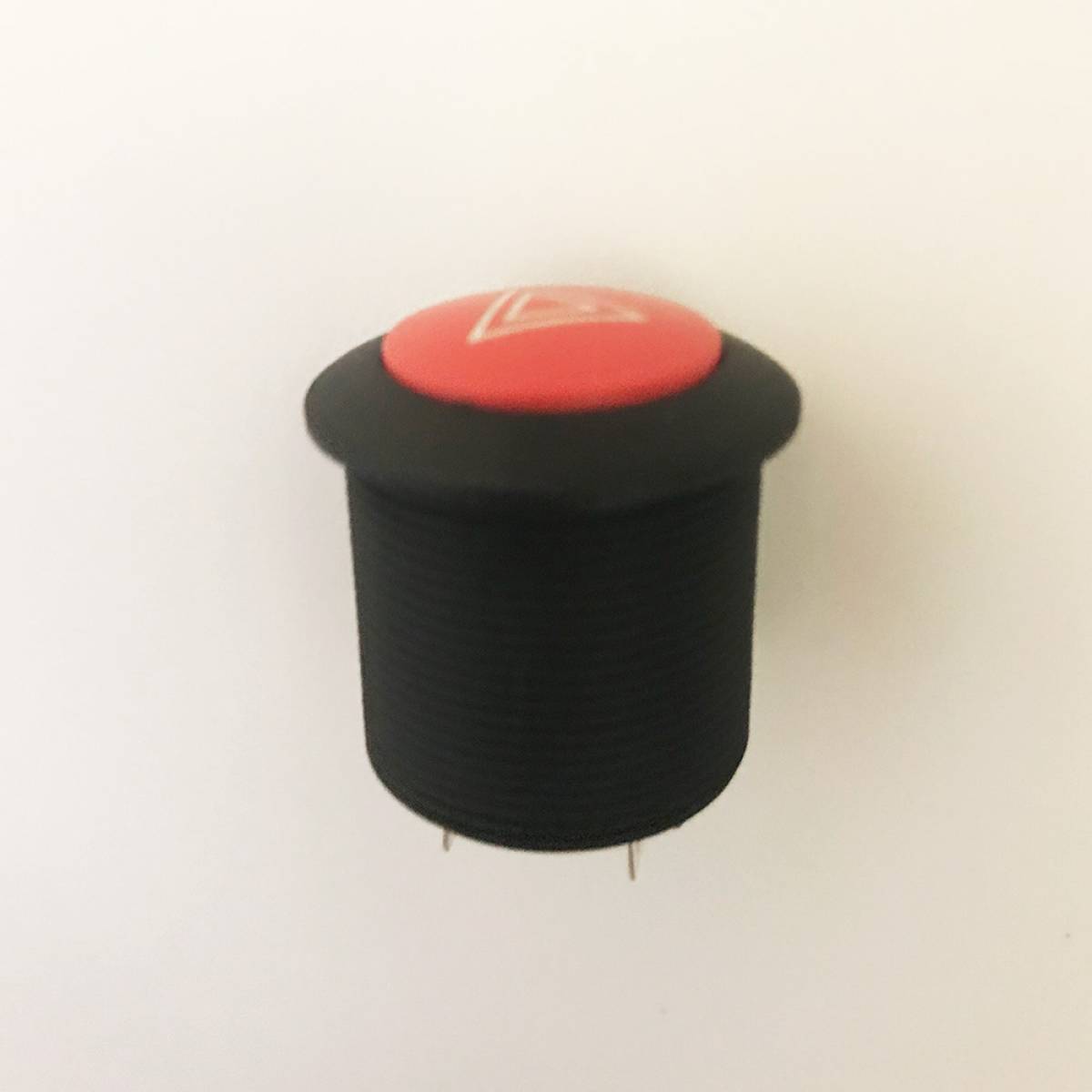

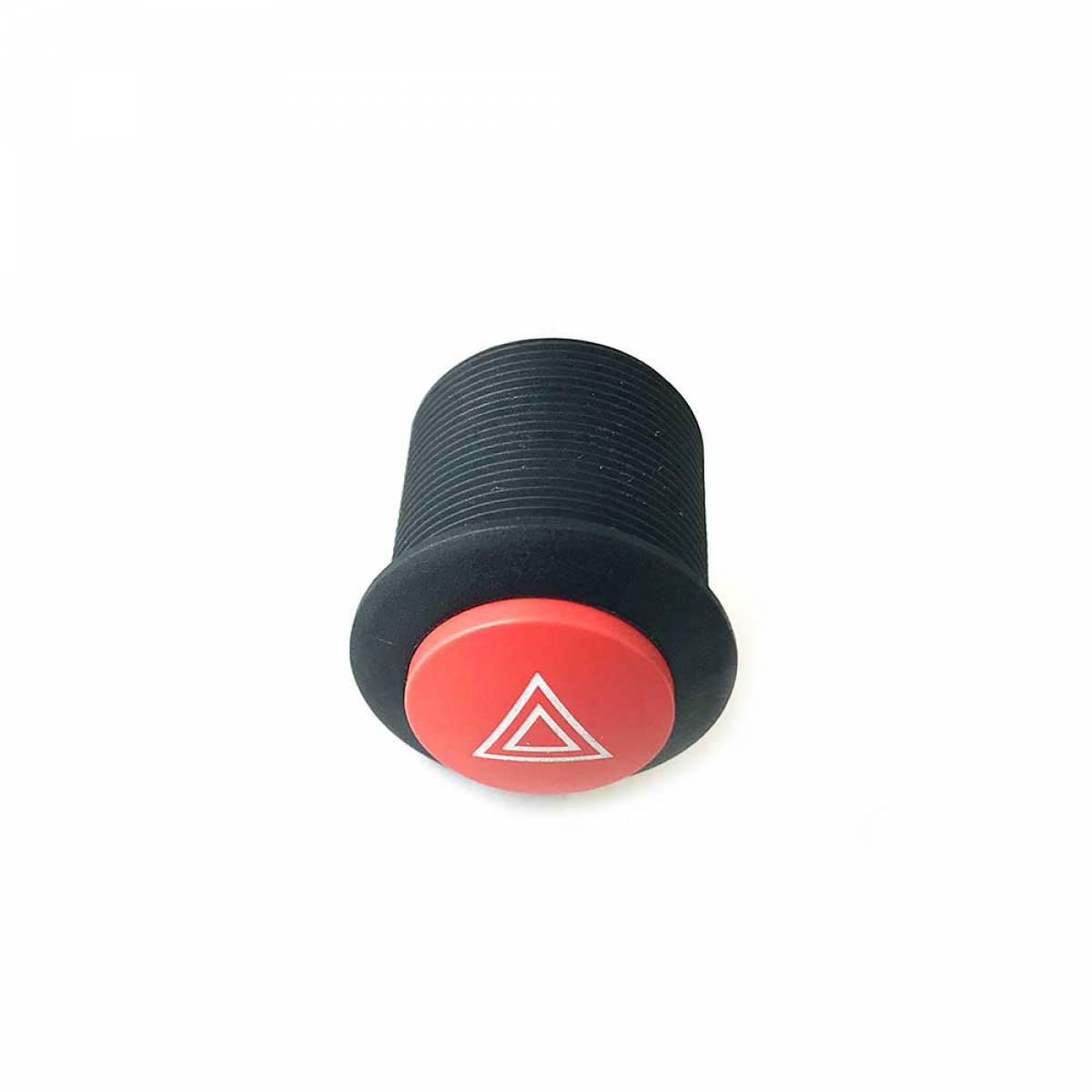

APEM FP Series 24mm ONOFF Flasher Button

FP 24 mm series illuminated pushbutton switches feature a dia.
24 mm bushing and are available with fully-illuminated plungers or
with laser-etched illuminated symbols. These highly visible products are ideal
for applications including tractors, buses, trucks, cranes and automotive.

MAIN FEATURES
Easy to locate in poorly lit or dark environments
Highly visible
Large but lightweight
Easy design and color customization
Space saving: no need for separate indicator light
Available in momentary or latching
Mounting by threaded bushing
47.00 €
Piece
Piece Unit price Total
10 39.10 € 391.00 €
Property Name Property Value
SERIES FP
MODEL Threaded bushing, dia. 24 mm
ACTUATOR Round, curved
ELECTRICAL FUNCTIONS OFF - ON
LED CONTROL AND NO OF POLES Independent, 1 pole
TERMINALS Solder lug
CONTACTS Silver
ACTUATOR COLOR Red
BEZEL COLOR Black
LED COLOR White
LED RESISTORS 12 VDC resistor
MARKING Laser
SYMBOLS Choose one
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Panel thickness : 1(.039) to 18 mm (.708) max.
    • Total travel : 2.5 mm ± 0.5 mm
    • Typical operating force : 8 N ± 2 N
    • Low level or mechanical life :
    - Momentary models : 1 million cycles
    - Latching models : 200,000 cycles
    • Torque : 3 Nm max. applied to nut

    ENVIRONMENTAL SPECIFICATIONS
    • Front panel sealing : IP69K according to DIN 40050-9
    • Operating temperature : -40 °C to +75 °C

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load :
    - silver contacts (code 2) : 4 A 12 VDC
    - gold plated contacts (code 4) : 200 mA 12 VDC
    • Initial contact resistance : 50 m? max.
    • Insulation resistance : 1 G? min. at 500 VDC
    • Dielectric strength : 1,000 Vrms 50 Hz min.
    • Electrical life at full load :
    - Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)
    - Latching models : 200,000 cycles

    MATERIALS
    • Case : PA46
    • Actuator : PA12
    • Bushing/ bezel : PA66
    • Contacts : silver (code 2) or silver, gold plated (code 4)
    • Cable : length 300 mm, section depending on switch model
    • Terminal seal : epoxy or overmolding
