Description
  • Brand IDEC
  • Product CodeXA1EBV311R
  • Stock Status3
  • Stock3

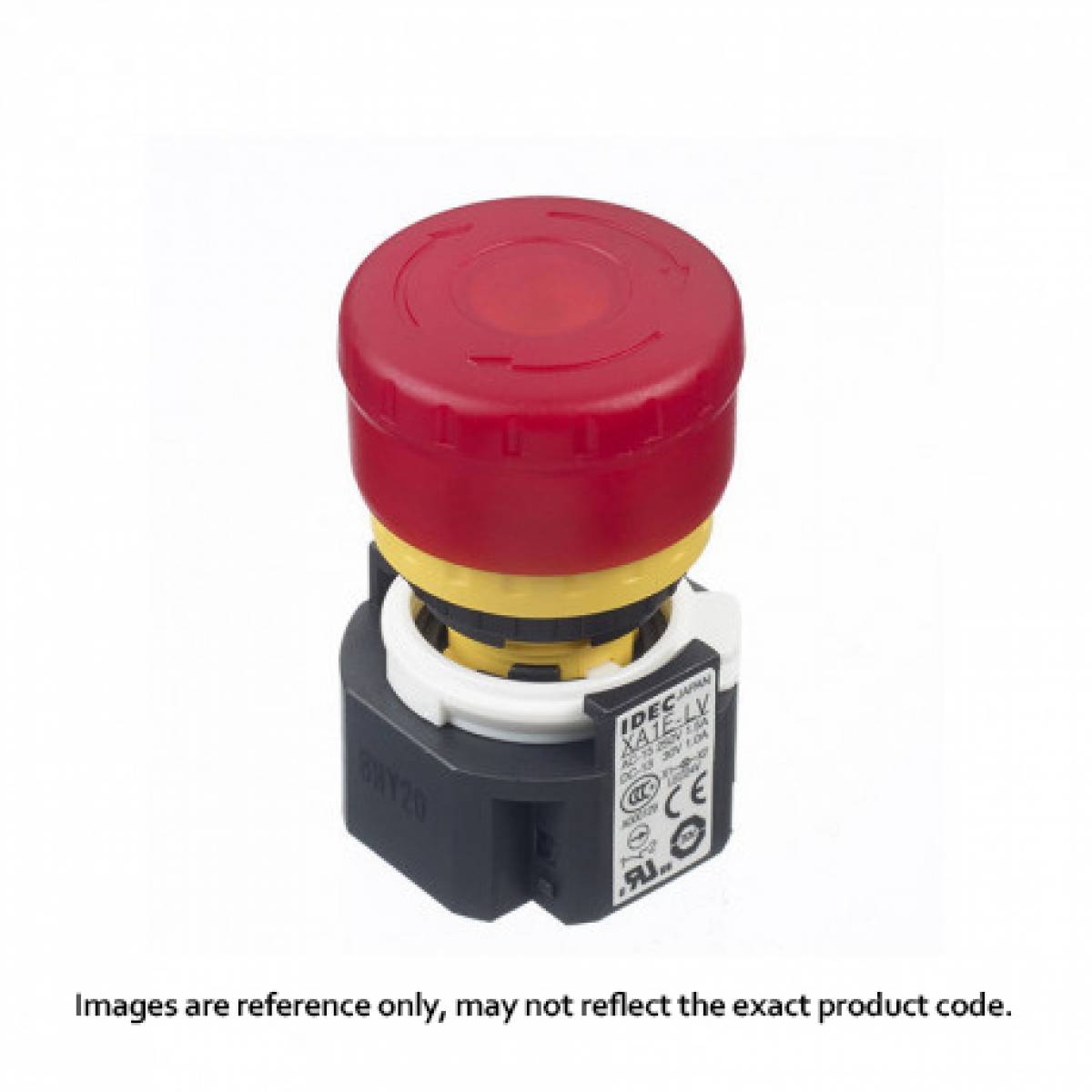

IDEC 16MM XA Series 1NC 1NO Emergency Stop Button

The first Ø 16 mm, 4-contact emergency stop switch.
Unique "Safe Break action" : the contacts are held open
if the button is not correctly fixed or damaged.
Reset is done by either pulling or twisting the button.


MAIN FEATURES:

3rd generation E-stop with IDEC's original "Reverse energy structure" and the "Safe break action"
Numerous options : Button size and color, terminals, illumination,
Two ways of resetting - pulling and turning,
Very compact product up to 4 contacts,
Fully qualified and certified;

36.00 €
Piece
Piece Unit price Total
Property Name Property Value
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Ø 16.2 mm mounting hole;
    • 27,9 mm depth behind the panel for 1 to 4 contacts, illuminated or not;
    • Two button sizes - Ø29 mm & Ø40 mm;
    • Button colors - two red for emergency (Munsell 5R4/12 or 7,5R4,5/14) and yellow or grey for stop switch
    • Solder or PC board terminals;
    • Direct opening action mechanism (IEC 60947-5-1, Annex K);
    • Safety lock mechanism to prevent inadvertent operation;


    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperatures: -25 to +60 °C (no freezing);
    • Operating humidity: 45 to 85% RH (no condensation);
    • Storage temperature: -45 to +80 °C;
    • Degree of protection (IEC 60529): IP65,
    • Vibration resistance:
    Operating extremes: 10 to 500 Hz, amplitude 0,35 mm, acceleration : 50 m/s²
    Damage limits: 10 to 500 Hz, amplitude 0,35 mm, acceleration : 50 m/s²
    • Shock resistance :
    Operating extremes: 150 m/s² maximum
    Damage limits: 1,000 m/s² maximum


    ELECTRICAL SPECIFICATIONS
    • Rated insulation voltage (Ui): 300V (illuminated part: 60V);
    • Rated thermal current (Ith): 5 A: 1 to 4 NC main contacts and 1 NO monitor contact;
    • Contact resistance: 50 mohm max (initial value);
    • Insulation resistance: 100 Mohm min (500V DC megger);
    • Overvoltage Category: II (IEC 60664-1);
    • Impulse Withstand Voltage: 2.5 kV (IEC60664-1/60947-5-1);
    • Short-circuit Protection: 250V/10A fuse, (Type aM IEC60269-1, IEC60269-2)
    • Electrical durability: 100,000 operations min - 250,000 24 VAC/DC, 100mA;
    • Min. applicable load: 5V AC/DC, 5 mA;


    MATERIALS
    • Actuator : Plastic


    MECHANICAL SPECIFICATIONS
    • Push to lock : 10,5 N, Pull to reset : 10 N, Turn to reset : 0,16 Nm
    • Mechanical durability: 250,000 operations min;


    APPROVALS
    CSAUL
