YW1BV4E01R

Print this page

Description

Brand IDEC
Product CodeYW1BV4E01R
Stock Status35
Stock35

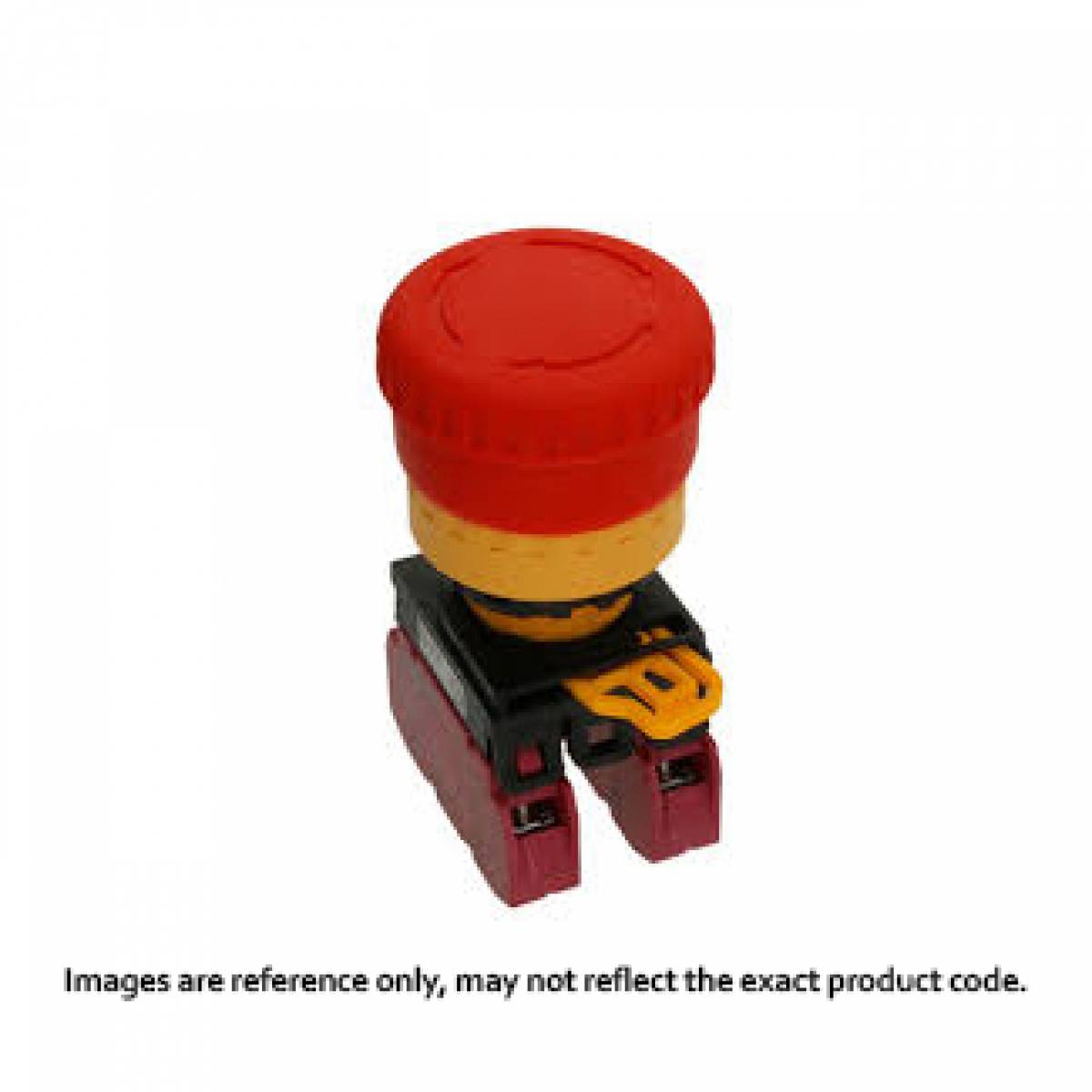

IDEC 22MM YW Series 1NC Emergency Stop Button

An ergonomic emergency stop switch certified to
the highest safety standards: UL 508, CSA 22.2 and EN 60947-5-5.
For dia. 22 mm panel cut-out. Easy to mount and operate.
Illuminated version available.

MAIN FEATURES
Industrial range
Push to lock, pull or twist to release
Current/voltage rating: AC-12, 6 A 240 VAC / DC-12, 8 A 24 VDC
Panel sealed to IP65
Mechanical life: 250,000 cycles (with one contact block)
Available in single, double or three pole version

YW Series Datasheet

9.60 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value

We'll Call You

Description

GENERAL SPECIFICATION
• Panel thickness : 6 mm (.236) max.
• Switch terminals : M3.5 screws

ENVIRONMENTAL SPECIFICATIONS
• Front panel sealing : IP65
• Terminals IP20 (finger safe)
• Operating temperature: -20 °C to +55 °C

ELECTRICAL SPECIFICATIONS
• Electrical function : push to shutt off, pull or twist to release
• Current/voltage rating :
AC-12, 10 A 24 VAC / 6 A 240 VAC
DC-12, 8 A 24 VDC
AC-15, 10 A 24 VAC / 3 A 240 VAC
DC-13, 4 A 24 VDC
• Electrical life : 100,000 cycles with one contact block
• Insulation resistance : 100 M? min.
• Dielectric stength : contact block 2,500 Vrms

MATERIALS
• Contacts : silver
MECHANICAL SPECIFICATIONS
• Low level or mechanical life : 250,000 cycles w. one contact block

APPROVALS
CSAUL
